CA Series Roundness Cylindricity Machine
Main Parameter:It can measure roundness, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity and runout of various regular and irregular ring-shaped workpieces.
- Product Overview
- Measurement Case
- Download
Roundness Cylindricity Measuring Machine
Precise positioning and accurate measurement low noise high resolution roundness instrument
China high quality roundness testing machine
China most accurate, stable and repeatable roundness measurement system manufacturer
MAIN PARAMETERS
It can measure roundness, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity and runout of various regular and irregular ring-shaped workpieces.
Analysis function: surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness evaluation method: minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method
Roundness filtering method: 1-500, 1-150, 1-50, 1-15，15-500
Waviness: 3-16, 3-17, 17-100
Technical Feastures
● Accuracy: Adopting high precision rotary aerostatic bearing structure, the accuracy is up to ±0.0125μm.
● Lifespan: The spindle adopts air floating structure, which never wears out and keeps the accuracy for a long time, and the instrument has a long lifespan.
● Data acquisition adopts imported precision circular grating, which collects 14,400 points per week with high accuracy and stability.
● Appearance: One-piece structure, beautiful and elegant.
● CA measurement software based on WINDOWS system, with intuitive and friendly interface, easy operation and rich measurement functions.

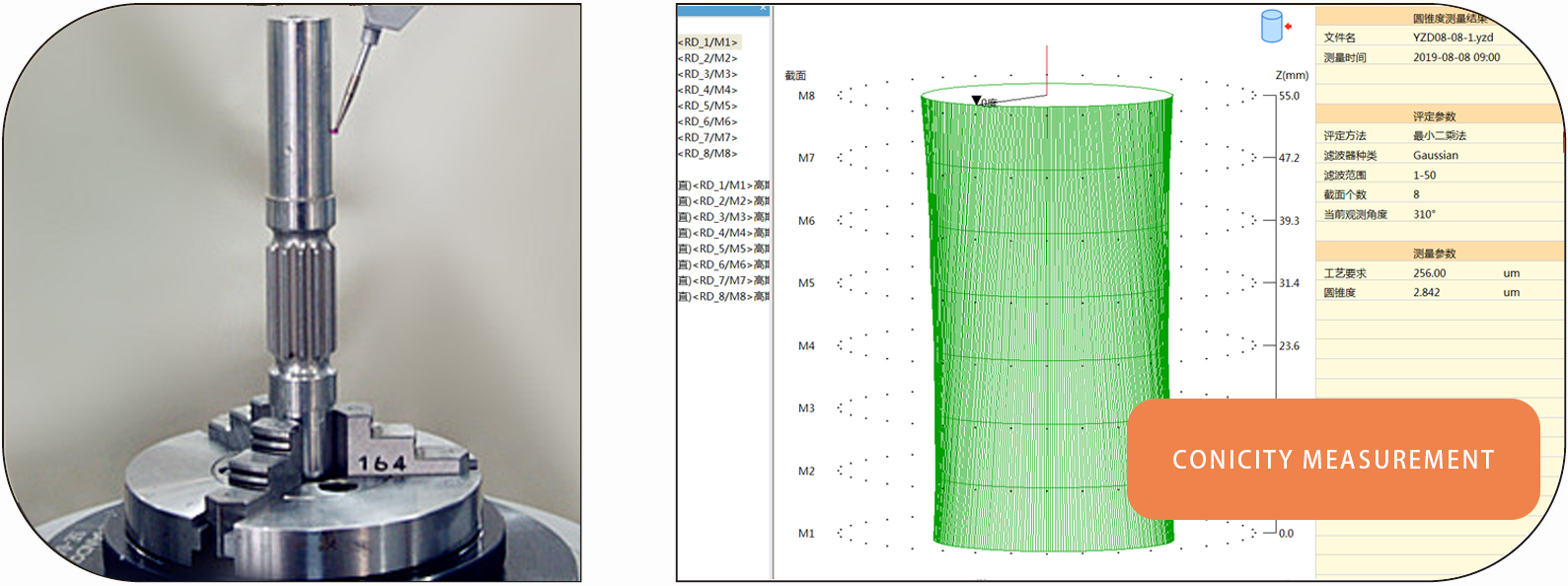

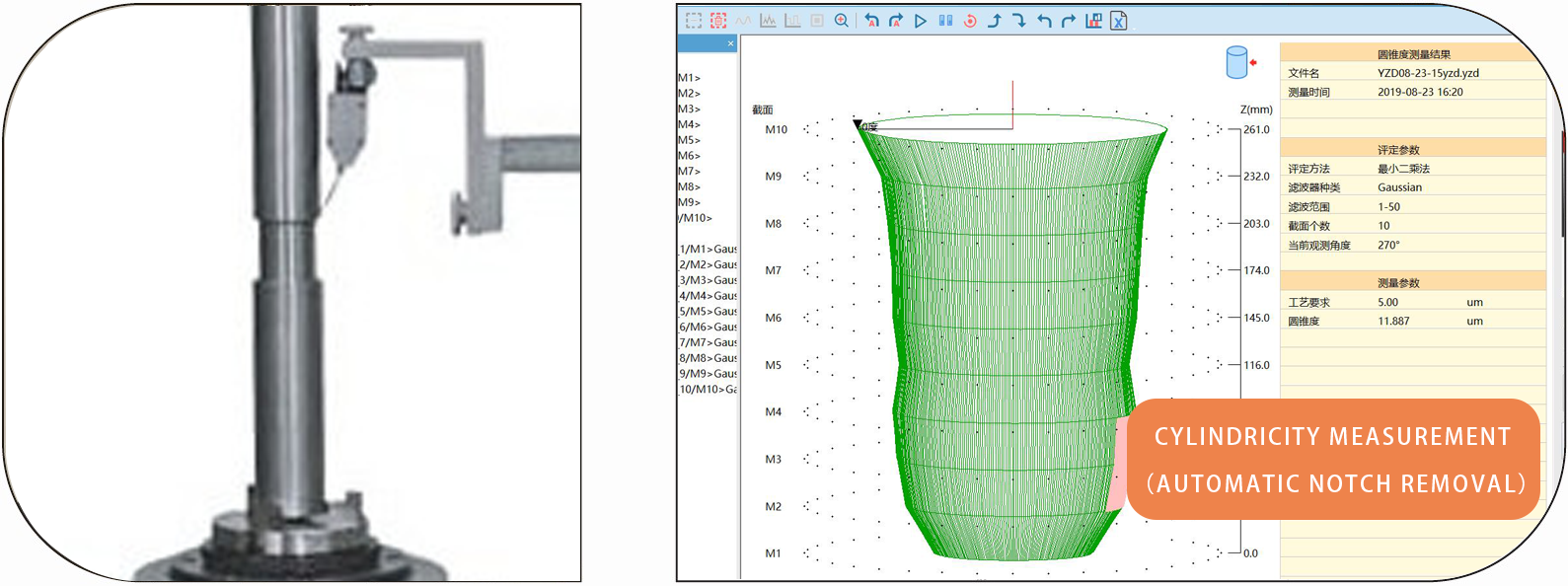

● Automatic recognition of contour interruption, automatic rejection of notch, abnormal point function.
● Partial arc measurement roundness function.
● Powerful analysis function, such as taper, diameter, ripple degree, wave height and spectrum analysis, etc.
● SPC statistical analysis: statistical analysis of a large number of measurement data and graphic analysis report.
● The measurement parameters can be set to judge the process requirements to improve the observability of quality control
● Single or multiple measurement data can be printed on the same page.
● Different sizes of ruby styli can be selected at will.
● High quality and reliable industrial control computer is adopted.
Standard Models
Item/Model | CA-30 | CA-65 | CA-95 | |
Measuring range | Max rotation diameter | φ320mm | φ420mm | φ420mm |
Max measuring height | 300mm | 400mm | 500mm | |
Max depth | Use standard probe: 100mm (when the aperture is less than 36mm); non-standard bracket can measure up to 300mm (aperture greater than 36mm, optional) | |||
Max load | 30Kg | 50Kg | 100kg | |
Straightness | 0.5μm/100mm | 0.4μm/100mm | ||
Parallelism of rotary axis and Z-axis (busbar datum) | 1.5μm/300mm | 2μm/400mm | 2.5μm/500mm | |
